Ex p Control Systems: Ensuring Safety in Hazardous Areas

Industries operating in hazardous environments require robust safety solutions to mitigate risks posed by flammable gases, mists, vapours, or dust. Ex p (purging and pressurisation) control systems, also known as pressurised enclosure systems, provide a crucial layer of protection, ensuring the safe operation of electrical equipment in these environments.  At JCE, our ATEX and IECEx-certified Ex p control systems deliver a reliable and customisable solution for hazardous area operations.

Understanding Ex p Control Systems

Ex p is an explosion protection method that prevents the ingress of explosive gases or dust into electrical enclosures. This is achieved by purging, which involves forcing out any potentially flammable atmosphere inside the enclosure using an inert or clean gas, followed by maintaining a positive pressure to prevent hazardous substances from entering. These systems are ideally suited for Zone 1 and Zone 2 (Gas) hazardous areas, as well as Zone 21 and Zone 22 (Dust) hazardous areas.

Key Features of Ex p Control Systems

• Overpressure Protection: Ex p systems maintain a positive pressure inside the enclosure to prevent the ingress of explosive gases or dust.
• Purging Capability: the system purges the enclosure with inert gas or clean air to dilute any potentially explosive mixture before operation.
• Modular Design: modern Ex p control systems consist of three basic components: Ex p controller, Ex p pressure monitors, and Ex p purge valves.
• Scalability: These systems can accommodate enclosures ranging from very small (10 litres) to very large (4,000 litres) volumes.
• Energy Efficiency: Advanced flow and pressure control technology minimises compressed air consumption during purge and operation cycles, helping to lower energy costs
• Simplified Maintenance: A maintenance bypass switch allows for safe inspection and servicing of Ex p systems without full shutdown, by temporarily suspending purge alarms while maintaining safe pressure levels

Advantages of Ex p Control Systems

Ex p (pressurised enclosure) systems offer several benefits compared to other explosion protection methods.

The table below highlights key differences:

Protection Method	Advantages	Limitations
Ex p (Pressurisation)	Lighter, cost-effective, scalable for various enclosure sizes, better thermal management	Requires pressure monitoring and purging processAnd usually a source of compressed air.

Industry Applications

Ex p control systems play a vital role in multiple industries where explosion risks exist. These include:

• Oil & Gas: protecting control panels, motor starters, and instrumentation systems.
• Chemical & Pharmaceutical: ensuring the safe operation of automation and process control equipment.
• Marine & Offshore: safeguarding navigation and communication electronics.
• Mining: maintaining safe electrical operations in underground environments.
• Food Processing & Dusty Environments: preventing combustible dust ignition in facilities handling flour, sugar, or wood dust.

Performance in High-Hazard Environments

Ex p systems excel in hazardous conditions, providing reliable protection and adaptability. Their key attributes include:

• Continuous Monitoring: Ex p systems regulate internal pressure, compensating for leakage losses.
• Fail-Safe Operation: loss of pressure triggers an alarm and may automatically shut down power to ensure safety.
• Thermal Management: pressurised systems can incorporate air conditioning, making them ideal for high-heat applications.
• Long Service Life: with a typical lifespan of over 15 years, Ex p systems offer durable explosion protection.

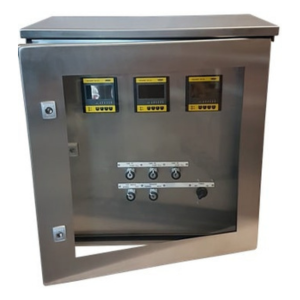

JCE’s Ex p control systems are designed for durability, compliance, and ease of use. Each control panel is bespoke, tailored to the customer’s specific needs. By offering a cost-effective and flexible explosion protection solution, Ex p systems continue to be the preferred choice for a wide range of hazardous area applications.
