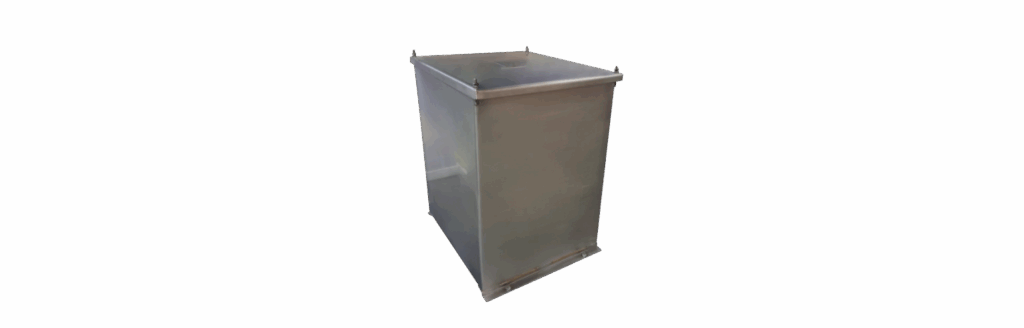

Ex Battery Enclosure Series (BC)

The JCE Group battery enclosure BC series range from 25Ah up to 200Ah and are intended for use in areas made potentially hazardous by the presence of flammable liquids, gases or vapours (Zone 1 and Zone 2).

A battery enclosure is used to provide a power supply for equipment where conventional supply sources fail or are not available.

Batteries of the BC series provide high capacities for many different applications. This range has been successfully in use for over twenty years in many installations worldwide. The success of BC batteries comes from the superior dryfit technology, available in a wide range of models to provide a solution for every power need.

The BC battery range can be combined with JCE’s solar panels and solar charge controllers to provide a standalone off-grid power solution suitable for use within hazardous areas.

Materials & Finish

Body and Cover 316L stainless steel
Cover Nuts 316L stainless steel
Finish Brushed stainless steel
Earthing All enclosures are supplied with a M8 or
M10 stainless steel internal and external
earth stud as standard.
Larger internal earths can be
fitted on request.
Electrical Connections Each BC battery is supplied with fixed double insulated 5m long battery leads.

Ratings & Approvals

Categories Ex II 2 G
Codes Ex eb IIC T6/T5 Gb
Protection Grade IP66
Certificate Nos TRAC14ATEX0059X
IECEx TRC 14.0025X
Temperature -20°C to +40°C T6
-20°C to +50°C T5
