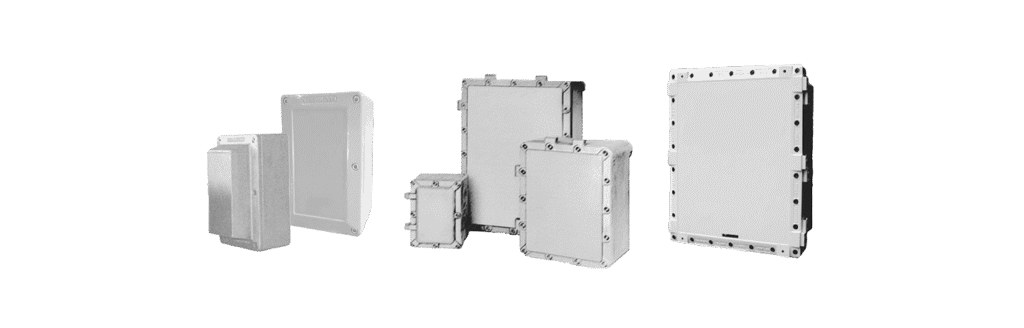

Ex Enclosure Series (EJB)

The JCE range of EJB explosion proof enclosures are intended for use in areas made potentially hazardous by the presence of flammable liquids, gases, vapours and dusts (Zones 1, 2, 21 and 22).

Their function is to house a wide range of electrical equipment and devices including terminals, relays, contactors, variable speed drives, PLCs, batteries, and other transmitting/receiving instruments. They can be custom built to exact specification.

For indication instruments, please see the JCE range of EJB window enclosures (EJBW).

The JCE Group EJB enclosures are compatible with the entire range of JCE components, which include: Push Buttons (PB), Pilot Lights (PL), Emergency Stop Buttons (ES), Key Switches (KS) and Flameproof Handles (SS).

Materials & Finish

Body & Cover	Aluminium alloy ENAC-42000 (LM25) to BS EN 1706:1998 with less than 0.2% copper content.
Cover Bolts	Stainless steel (304)
Mounting Plate	Mild steel zinc plated (passivated) Aluminium (EJB60)
Finish	Natural. A corrosion resistant finish is also available, see options.
Earthing	All enclosures are supplied with a 6mm stainless steel (304) internal and external earth stud as standard. Larger internal earths can be fitted on request.
Gasket	Silicone AD16

Ratings & Approvals

Categories	Ex II 2 (1) G Ex II 2 (1) D
Codes	Ex d [ ] IIB T4...T6 Gb Ex d [ ] IIB+H² T4...T6 Gb Ex tb [ ] IIIC T135...T85°C Db Ex d op pr [ ] IIB T4...T6 Gb Ex d op pr [ ] IIB+H² T4...T6 Gb Ex tb op pr [ ] IIIC T135...T85°C Db
Protection Grade	IP66
Certificate Nos	TRAC12ATEX0020X IECEx TRC 12.0008X EAC & NEC available upon request
Temperature	-40°C to +60°C (See page three of product data sheet for full specifications)
