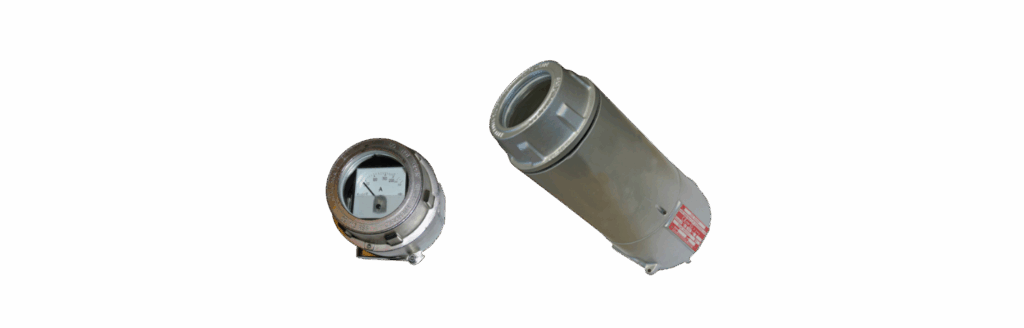

Ex Enclosure Series (EMH)

The JCE range of EMH explosion proof, windowed enclosures are intended for use in areas made potentially hazardous by the presence of flammable liquids, gases, vapours and dusts (Zones 1, 2, 21 and 22).

Their function is to house a wide range of instrument equipment and devices including CCTV cameras, ammeters, voltmeters, ultra violet receivers, radio transmitters and infrared transmitters or receivers.

Materials & Finish

Body & Cover Aluminium alloy, EN AC-42000
(LM25) to BS EN 1706:1998 with less
than 0.2% copper content.
EMH29 also available in stainless steel
316 to BS3146 (1975):Pt2:ANC4BFC
Locking Screw Stainless steel (304)
Finish Natural. A corrosion resistant finish
is also available
Earthing All enclosures are supplied with a 6mm
stainless steel (304) internal and external
earth stud as standard. Larger internal
earths can be fitted on request.

Ratings & Approvals

Categories Ex II 2 G
II 2 D
Codes Ex d IIC T5 / T6 Gb
Ex tb IIC T95°C / T80°C Db
Ex d op is IIC T5 / T6 Gb
Ex tb op is IIC T5 / T6 Gb
Protection Grade IP66
Certificate Nos TRAC13ATEX0054X
IECEx TRC 13.0018X
Temperature -40°C to +60°C
