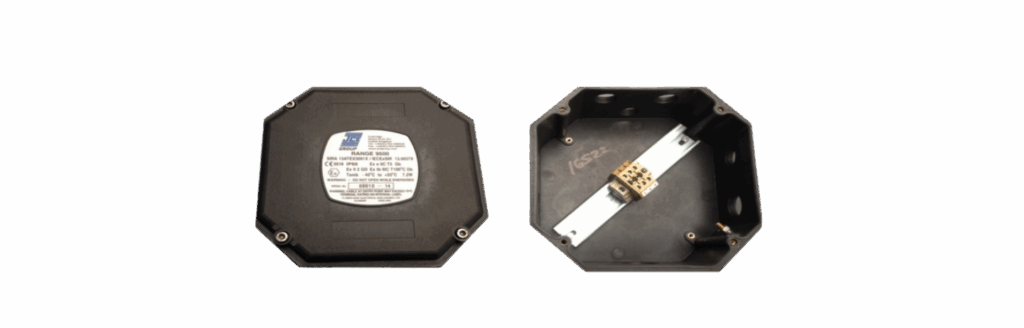

Range 9500 Ex e GRP Junction Box

The JCE Group Range 9500 increased safety terminal enclosures have been certified to give a large measure of flexibility based on Power Dissipation and are suitable for use in Zone 1 & 2 gas hazardous areas and Zone 21 & 22 hazardous areas which contain conductive combustible dusts. These Explosion Protected / Weatherproof junction boxes can be fitted with different terminal, cable entry and earthing arrangements. Product complies with standards IEC EN 60079-0, IEC EN 60079-7 and IEC EN 60079-31.

Materials & Finish

Body and Cover Glass reinforced polyester, Fortron PPS
for 130°C ambient, when fitted with
ceramic terminals.
Cover Screws Anti-loosening stainless steel
Finish Matt black
Earthing M6 internal & external stainless steel
or brass earth stud earth continuity
plate galvanised steel, copper or brass
Cable Entries Direct through body (threaded or clear)
Weight 1.2 kg
Gasket Silicon rubber
Mounting External 6.5mm clearance holes within
the enclosure

Ratings & Approvals

Categories II 2 G
II 2 D
Codes Ex e IIC T3 / T5 / T6
Ex tD A21 IIIC T85°C, T100°C,
T150°C
Protection Grade IP66
Certificate Nos SIRA 13ATEX3091X
IECEx SIR 13.0037X
Temperature -40°C to +40°C (T6)
-40°C to +55°C (T5)
-40°C to +130°C (T3)
