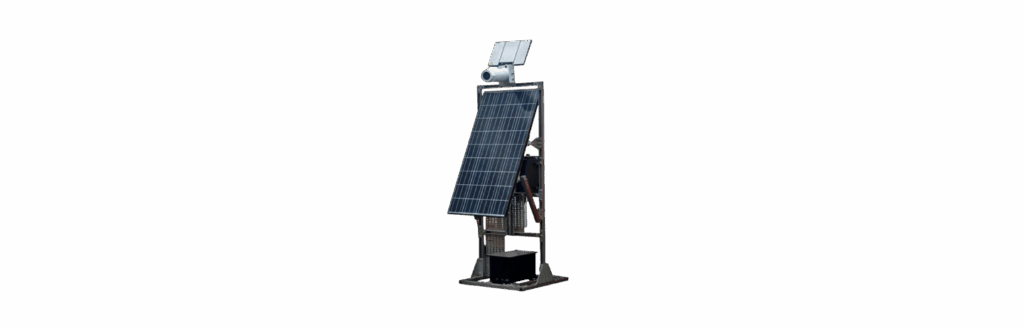

The Solar Satcom Pod is a compact solar powered remote satellite telemetry system utilising the latest satellite and internet technologies to bring data from a remote location to your computer in near real time. It is available in different power ratings from 120 – 960W peak with output voltages ranging from 12 – 240V AC or DC.
The satellite internet telemetry system includes a data transceiver, a solar panel, a rechargeable battery, a ground to satellite antenna and mounting hardware. The unit facilitates wireless local area network (wlan) interface and portable telephone communications. The solar panel and battery provide power to the satellite communication system and ancillary devices connected to the unit.
Battery Box | 316L Stainless Steel |
---|---|
Solar Panel | Aluminium Mounting Frame. Terminal Enclosure made of GRP With 2 Exe ATEX M25 glands. |
Solar Panel Controller | |
Body & Cover | Copper free aluminium alloys LM25 (BS1490) with less than 0.2% copper content. |
Cover Bolts | Stainless Steel (18/8). |
Finish | Chromate primed and polyester powder coated. Textured black as standard. Other finished available on request. |
Frame | 316L Stainless Steel |
Antenna | GRP |
Earthing | All enclosures are supplied with a 6mm stainless steel (18/8) internal and external earth stud as standard. Larger internal earths can be fitted on request. |
Entries and Thread Standards | Standard thread forms are ISO Metric to BS 3643, NPT or GAS can be supplied on request. |
Protection Grade | Ingress Protection IP 23, or IP66 on request |
---|---|
Ex Rating | Ex nA nR II T5 |
